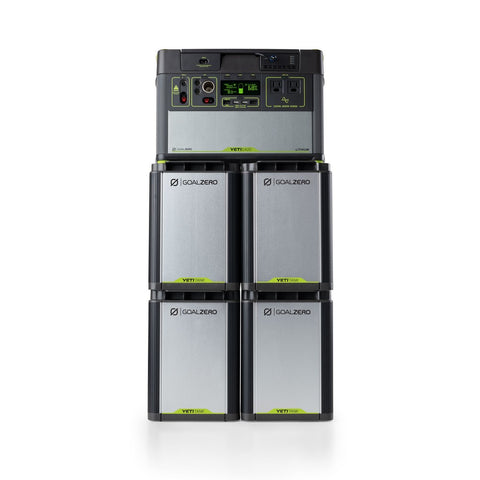

Home System Kit 1 Yeti Link + 4 Yeti Tanks

  • Sale
  • Regular price $2,319.91


1 Yeti Link + 4 Yeti Tank

The Yeti Tank Expansion Battery integrates with a Yeti Lithium Portable Power Station and Yeti Link Expansion Module to increase your energy storage capacity. Each Yeti Tank lead-acid battery adds 1.2 kWh of energy storage to your system.

NOTE: In order to chain a Yeti Tank to a Yeti 1000, 1400, or 3000 Lithium, you must use a Goal Zero Yeti Link Expansion Module. To use a Yeti Tank with a Yeti 1250 you will need the Yeti 1250 Ring Terminal Connector Cable

Goal Zero Yeti Home Energy Storage

Customizable, versatile energy storage system backs up four essential circuits in your home and scales to meet your specific power needs.

Our industry-leading battery chaining technology allows you to connect cost-effective lead-acid batteries to our high-quality Yeti Lithium power stations to easily scale your energy storage capacity.

Integrate directly with your home's circuits for a more seamless backup power experience. Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more.

Charge Times

  • Wall Charger (72W) 18hrs

Ports

  • Expansion port male connector (input/output) 100A Max
  • Expansion port female connector (input/output) 100A Max

Battery Details

  • Lead Acid (AGM)
  • 1200Wh (12V, 100Ah)

General

  • Dims 15.5 x 7.5 x 10.5 in (39.37 x 19.05 x 26.67 cm)
  • Weight 77.1 lbs (34.97 kg)





The Yeti Link Expansion Module allows you to chain a Yeti Tank Expansion Battery to a Yeti Lithium Portable Power Station to increase your energy storage capacity. When placed in “Car Mode,” Yeti Link can also be used to recharge a Yeti Lithium from your vehicle.

NOTE: Link is only compatible with a Yeti 1000, 1400, or 3000 Lithium.

Yeti Link Car Mode

Quickly and easily recharge a Yeti Lithium from your vehicle while on the move.

When placed in "Car Mode," Yeti Link allows you to safely pull power from your vehicle's alternator. Charge rates vary from 25A - 50A (300W - 750W) depending on Yeti Lithium size and capacity.

NOTE: Link must be in Car Mode to utilize this feature or it will drain your vehicle’s battery. All Links comes standard set in "Tank Mode." To switch from Tank Mode to Car Mode, push pinhole reset button on top of the Link four times. When Link is in Car Mode, all four indicator lights will turn on and blink together. To switch back to Tank Mode, press pinhole reset button four more times. When Link is in Tank Mode, lights will scroll from bottom to top individually.

Charge Times

  • Max Input from Yeti Tank to
  • Goal Zero Yeti 1000 454-605W
  • Goal Zero Yeti 1400 454-750W
  • Goal Zero Yeti 3000 750W

Ports

  • Do not exceed 22V input
  • 8mm Charging Port (input): 14 - 22V Do not exceed 150W (10A) per port
  • External Battery Connector (ouput): 65A charge controller

General

  • Weight: 1.5 lbs (680 g)
  • Dimensions: 10.25 x 3.3 x 1.5 in (26 x 8.4 x 3.8 cm)
  • Warranty 12 months
